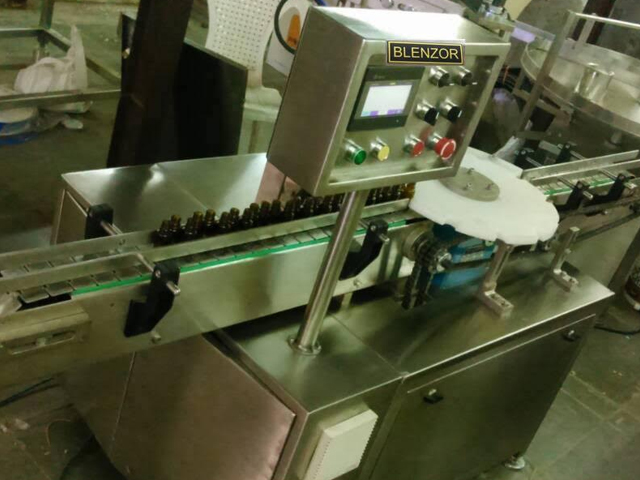

Fully-Automatic Pick & Place Screw Capping Machine

  • Suitable to apply screw caps on bottles
  • Complies with Servo Driven Capping Unit
  • Torque Controller Base Magnetic Capper
  • Vibratory Cap Feeder
  • Pick Up & Place type Robotic Capping system
  • 12 Station Turret: 800mm Dia
  • 600mm Infeed & 600mm Outfeed Conveyor
  • Variable Speed Drive
  • Servo Indexer
  • PLC Based Controller with Touch Screen HMI
  • 1HP Main Motor Drive with Gear Box Transmission.
  • SS Covers
  • Power: 415V 3 Phase, 50Hz/1.2KW
  • Air Pressure: 4-5 Bar
  • Dimension: 2000mmL x 1200mmW x 1500mmH
  • Weight: 500Kg Approx.
  • Speed: 50 Bottles Per Minute

Industrial Catagories:

Syrup Bottle Capping, Pharmaceutical Bottle Capping, Dry Syrup Bottle Capping, High Speed Bottle Capping, Servo Capping Machine, Pick & Place Capping Machine, Servo Screw Capper, Pick & Place Capper, Medical Bottle Capping
