Semi-Automatic Paste Filler |
| |
|
|
| |
| |
- Product View
- Technical Specification
|
 |

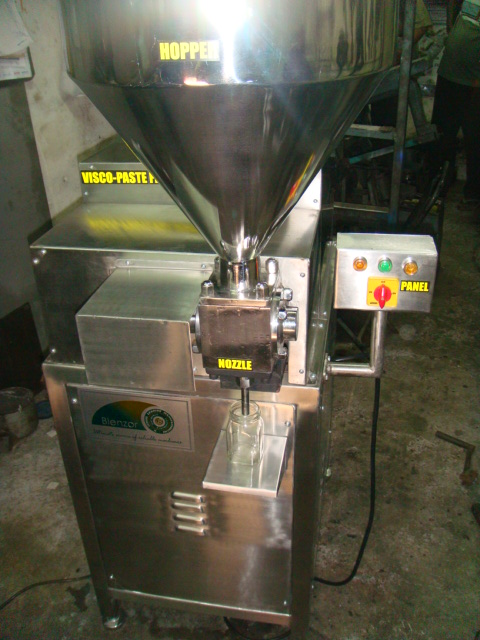

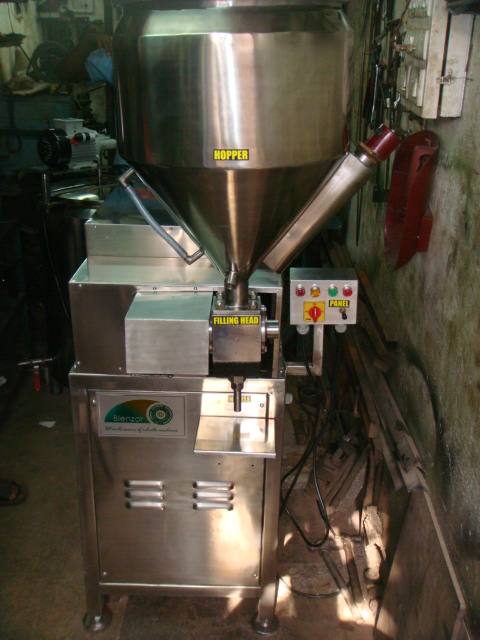

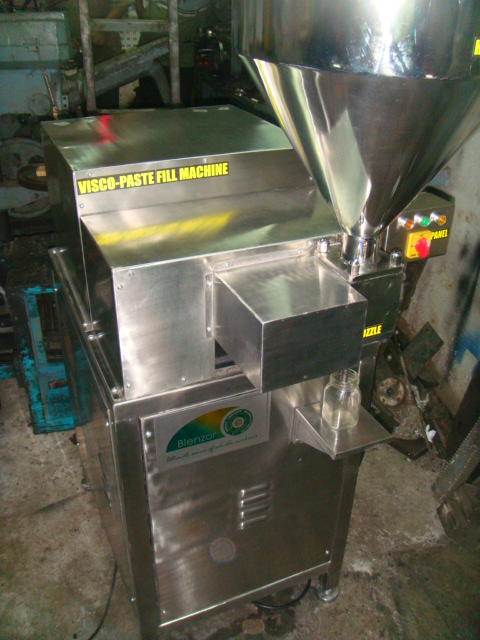

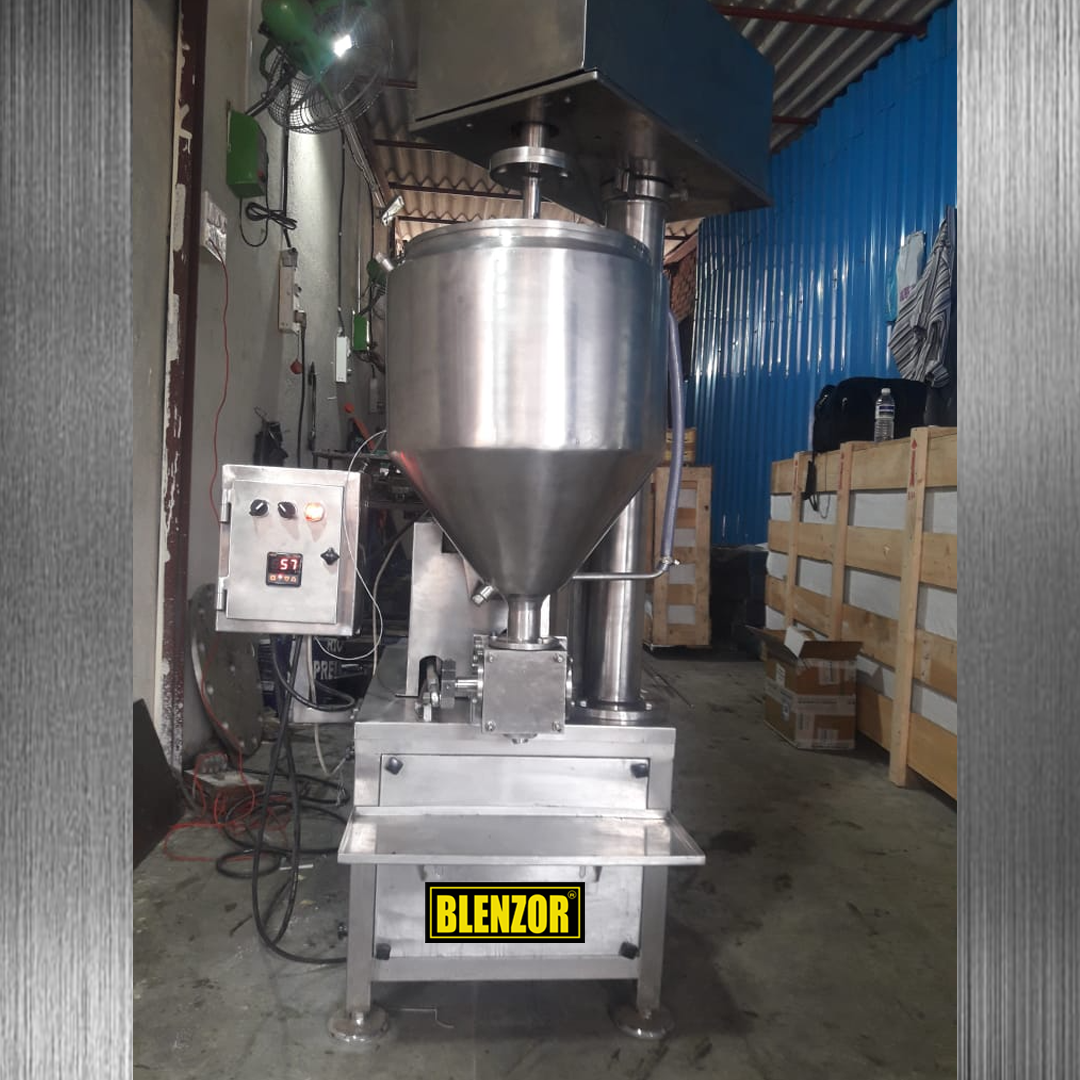

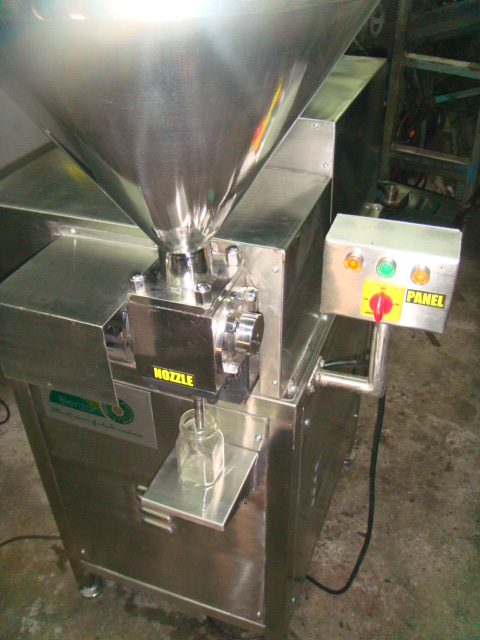

BLENZOR offers “Semi-Automatic Paste Filler” suitable for filling viscous paste ,creams in bottles, jars, pouches |
|
BLENZOR’s “Semi-Automatic Paste Filler Machine” incorporated positive displacement piston base mechanism. |
|
BLENZOR’s “Semi-Automatic Paste Filler “works on electric motor driven heavy duty piston to handle various viscosities of the wide range of the product. |
|
| |
| Industrial Catagories: |
| Visco paste filler,auto paste filler,food paste filler,cream filler,fevicol filler,cosmetic cream filler,gel filler,paste filling machine,honey filler,balm filling machine,ginger garlic paste filler,syrup filling machine,hot sauce filling machine,hot paste filler,semi-automatic piston filler,motorized paste filler,food paste filling machine,filling machine for food pastes,filling machine for creams,jar filling machine,lotion filling machine,gel filling machine. |
|
|
| Machine |
Semi-Automatic Paste Filler |
| Filling Range |
5gm-30gm
50gm-200gm
300gm-1000gm
(All sizes can be done on one machine but separate pistons are required for each range) |
| Operating System |
Automatic, Foot Switch |
| Hopper Capacity |
70Lit.
Hot Jacketted Hopper with 2KW Heater- Optional |
| Application |
viscous paste, creams, balms, adhesive, food paste, cosmetic lotions, hair styling gels, mixed fruit jams, syrups, fevicol, honey etc. |
| Filling in |
Bottles,Jars,Pouches, Containers |
| Fill Accuracy |
+/-1% |
| Construction |
Stainless Steel |
| Contact Parts |
Stainless Steel 304 Grade/316 Grade (as per request) |
| Controller |
Electric Control Panel |
| Drives |
Electric Motor |
| Motor |
1HP |
| Piston |
PTFE (Teflon) |
| Power Consumption |
0.75KW |
| Power Supply |
220V Single Phase,380-415V 3 Phase/50Hz |
| Dimension |
1200mmL x900mmW x 1200mmH |
| Weight |
500kg |
| Output |
5-15 Fills Per Minute |
|
|
|
| |
|
